#### Weeee I’m a light beam…we’ll sort of. Read on and you’ll see what I mean.

We’ve been making our first baby steps with our project to do 3D visualisation of weather data in the browser. It looks like these two libraries are going to be really important for what we want to do:

• WebGL, a 3D vis library which allows you to use much of the 3D whizzyness of OpenGL but in the browser
• and threejs which wraps WebGL, making it easier to set up 3D environments.

They’re often used for rendering 3D environments such as you might see in computer games or animations.

### Our data’s a bit different

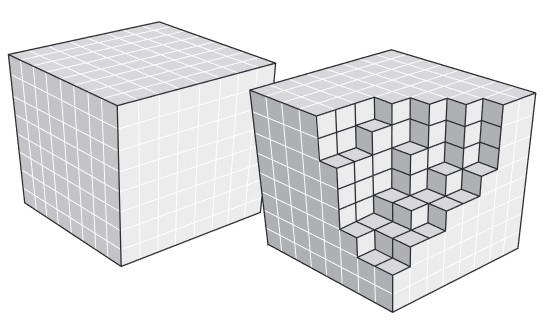

Our weather forecast data is made up of lots of values spread across a regular 3D grid. Imagine a bunch of boxes stacked up - the datasets we are trying to visualise are values of, say, air temperature in each box.

The Lebarba Blog (who I've nicked these images from!) is a great introduction to volume rendering.

Fortunately, rendering a continuous block of data like this has been done before, and is known as volume rendering. However, there aren’t standard libraries for this approach, so it involves writing your own 3D rendering routines which run on the GPU, using a language called GLSL. These routines sample the data along lots of straight lines starting at the camera, and moving out in all directions. These lines are analogous to rays of light, and this approach is known as ray tracing for that reason.

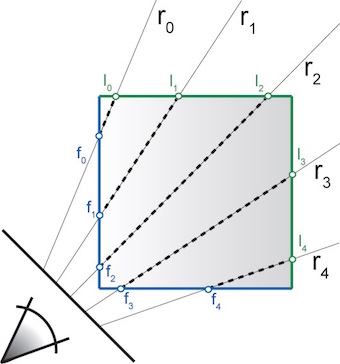

Another handy image from Lebarba (thanks!). This shows some example rays travelling from the viewer's eye, through the screen and through the grid of data, represented here as the square (although really its a 3D cube). I know that in reality light travels towards the viewer's eye, but, y'know, just go with it.

### Ray Tracing

This is is where it gets interesting/boring - depending on how into the nitty gritty you are.

Light travels in straight lines (which is lucky - it would be hard to do this it if didn’t). We need to figure out what values of data each ray passes through before it gets to a pixel in the screen, and then color the pixel accordingly.

But, please tell us, how on Earth can we do that?!, I hear you cry. Fear not! We really just need to know a couple of things:

1. Where a ray enters our volume of data ($f$ on the diagram…I don’t know why $f$, I’ve nicked the picture, but lets just go with it, right?) and
2. Where that ray exits our volume of data ($I$ on the diagram)
3. How many times we want to sample the data field on our journey though the data (this isn’t marked on the diagram, but lets call it…um…$n$, yeh $n$.)

If we know this stuff then we can do some vector maths to work out that, to get from one sample point to the next sample point, the ray moves
$\mathbf{d} = \frac{\mathbf{I} - \mathbf{f}}{n}$
(by the way, those bold, non-italic symbols mean we’re talking about vectors).

A ray starts with an intensity of one and a color of nothing. We begin at the beginning and take steps of $\mathbf{d}$ through the data. At each step we accumulate some colour and loose some intensity based on the data value until the ray reaches the other side of the data.

Prepare yourself, this is my favorite part. The cool thing is, because we are running this on the GPU, we can do this FOR ALL RAYS AT THE SAME TIME!!! *brain explodes*, which is known (rather excellently I think) as ray marching.

This wasn't what Ray signed up for when he joined the Lab.

### Some Practicalities

This is all very well in principle, but how do we actually do it?

It turns out getting the front position $f$ is relatively straight forward - threejs has set up a variable on the GPU called position which is closely related to $f$.

The back position $I$ is a little more complicated, however. It involves rendering the scene twice. The first time we render isn’t displayed, but the result is passed in and used in the second time rendering.

We start by rendering the x, y, z coordinate of the back face of our volume as an RBG colour - if you think this isn’t an obvious first step, don’t worry - you’re right, but keep reading and all will become clear.

This rainbowy thing is what you get when you render the back face of the cube using the x, y, z coordinates to set the r, g, b values respectively.

We then take this rendered rainbow image, and pass it into the next rendering pass. For a given start point, the corresponding end point x, y, z values are the RGB values of this rainbow image indexed at that start point.

That might take a bit of digesting, but what it means is this: combining the two rendering passes means we are using the 3D environment to calculate what the corresponding start and end points are by taking into account the field orientation.

# Sounds good - what can I do??

I thought you’d never ask! I’ve cobbled together a proof-of-concept 3D front end which uses synthetic data. Here’s some stuff I’ve been trying.
